Piece Screw Plug
Due to their long design, segmented threaded plugs fit tightly into your material and provide 100% protection. They are among our most preferred products, and our customers achieve high performance with them. As with all our products, this product is also made from high-quality, 100% recyclable raw materials, respecting the environment. Our segmented threaded plugs are available in black, red, yellow, orange, and blue colors. The segmented threaded plugs are produced in sizes G1/4, G3/8, G5/8, G1/2, G3/4, G1”, G1 1/4” and G1 1/2”. You produce, we protect.”

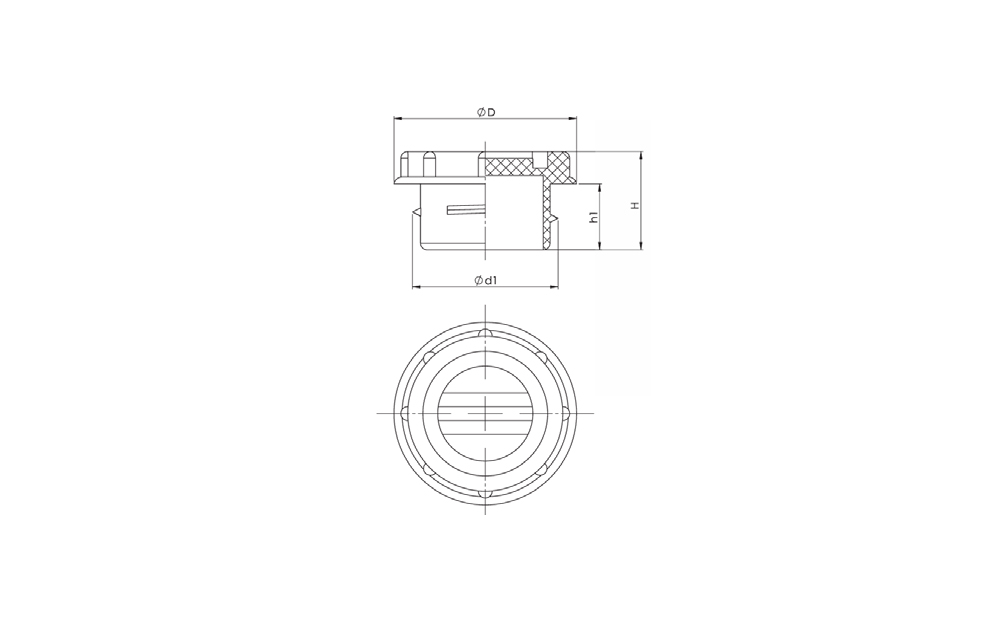

CODE / CODE | GAS / GAS | AA | D | d1 | H | h1 |
---|---|---|---|---|---|---|
100402 | G 1/4 " | - | 18.6 | 12.9 | 14.2 | 9.3 |
100403 | G 3/8 " | - | 21.2 | 15.9 | 14.8 | 9.8 |
100404 | G 1/2 " | - | 26.5 | 20 | 15.8 | 9.8 |
100405 | G 5/8 " | - | 26.5 | 22.5 | 17.5 | 11.5 |
100406 | G 3/4 " | - | 31.7 | 26 | 17 | 10.8 |
100408 | G1 " | - | 39 | 31.8 | 16.3 | 11.3 |
100410 | G1 1/4 " | - | 49 | 40.7 | 17.3 | 12.3 |
100412 | G1 1/2 “ | - | 53 | 47.7 | 19 | 13.5 |
